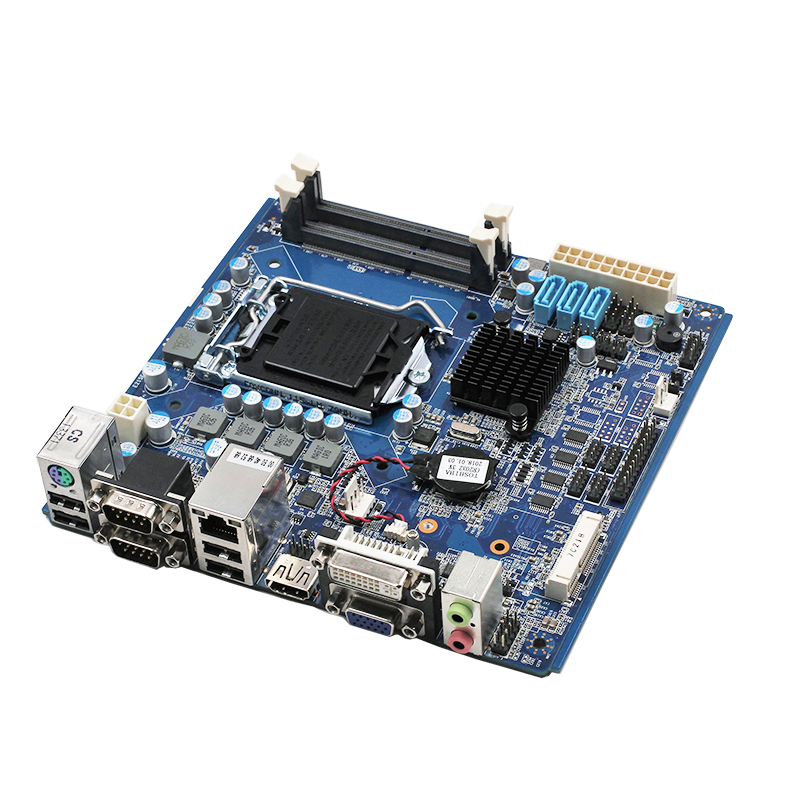

Intel H61 Express ATX chipset mini itx motherboards 1155 8USB 2.0 port DDR3 industrial Laptop mainboards 3SATA2.0

Name: Intel H61 Express ATX chipset mini itx motherboards 1155 8USB 20 port DDR3 industrial Laptop mainboards 3SATA20
Brand: VEGASHINE / OEM
Price: 1 USD

China Intel H61 Express ATX chipset mini itx motherboards 1155 8*USB 2.0 port DDR3 industrial Laptop mainboards 3*SATA2.0 wholesale

Brand Name : VEGASHINE / OEM

Model Number : ITX-P6801D-H61

Place of Origin : Shenzhen China

MOQ : 1 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 units per Month

Delivery Time : 3 to 10 work days

Packaging Details : Carton

CPU : Intel® LGA1155 Sandy / Ivy Bridge I3/I5/I7 Processor

RAM : 2*SO-DIMM DDR3 1066/1333/1600Mhz up to 16GB

Ethernet : 1*Gigabit LAN

Display : DVI+ VGA,DVI+HDMI,HDMI+VGA dual Synchronous or asynchronous display

COM : 6*RS232

Size : 170 x 170 mm

Power : Single DC power supply

Contact Now

Intel H61 Express ATX chipset mini-itx motherboards 1155 8*USB 2.0 port DDR3 industrial Laptop mainboards 3*SATA2.0

Key features

Support Intel® LGA1155 Sandy / Ivy Bridge I3/I5/I7 Processor

2*SO-DIMM DDR3 1066/1333/1600Mhz,maximum up to 16GB

Integrated Intel® HD Graphics

Support DVI+ VGA,DVI+HDMI,HDMI+VGA dual Synchronous or asynchronous display

6*RS232

1*Gigabit LAN

8*USB2.0

3* SATAII interface

1* M-SATA Scoket

Mini-itx 170 x 170 mm

Single DC power supply

Specifications

Processor	CPU	Intel® Sandy / Ivy Bridge i3-i5-i7 CPU(LGA1155 CPU)
	CPU Package	LGA 1155 Socket
	Chipset	Intel H61
	BIOS	EUFI BIOS
RAM	Technology framework	Signal Channel DDR3 1066/1333/1600Mhz
	Capacity	SO-DIMM socket,maximum up to 16GB
	Socket	2*RAM socket
Video	Graphic controller	Intel HD Graphic 2500 or Other(According to CPU model)
	HDMI	Resolution maximum:1920*1200
	DVI	Resolution maximum:2560x1600,60Hz
	VGA	Resolution maximum:2048x1536,60Hz
	Double display support	DVI+ VGA,DVI+HDMI,HDMI+VGA,Synchronous or asynchronous display
I/O Back Panel	Ports	1PS/2 , 4USB ,2COM ,1DVI ,1VGA ,1HDMI ,1adiuo ,1MIC ,1*LAN
Network	Controller	RTL8111EL LAN,support RTL/PXE diskless booting
Audio	Controller	Realtek HD ALC662 chipset,provide 6 channels output(line-in,line-out,Mic)
Super I/O	Controller
Hardware monitor	Watchdog & Timer	0~255 timer (Watchdog code optional)
Hardware monitor	Cooler	Standard H61 Fan
Input/Output Interface	USB	8*USB2.0, Max. Current supported 5V/1A
	Serial ports	6*RS232
	GPIO	16bit,Free definition of input/output,3.3V@24mA
Extended bus	Mini-PCle	1*miniPCIE socket ,supported WIFI and 3G
Storage	SATA	3*SATA2.0 Maximum transmission rate 3Gb/s
Storage	M-SATA	1*mSATA socket ,Supported SANDISK protocol ,Max. transmission rate 3Gb/s
Power Supply	Power Type	Single input DC power supply ,DC12V,+/-5%
working environmen	working temperature	-20℃ ~ +60℃
	Storge temperature	-40℃ ~ +85℃
	Operating humidity	0% ~ 90% relative humidity, no condensation
	Storage humidity	0% ~ 90% relative humidity, no condensation
physical dimension	size	170 x 170 mm
physical dimension	N.W	0.5KG
