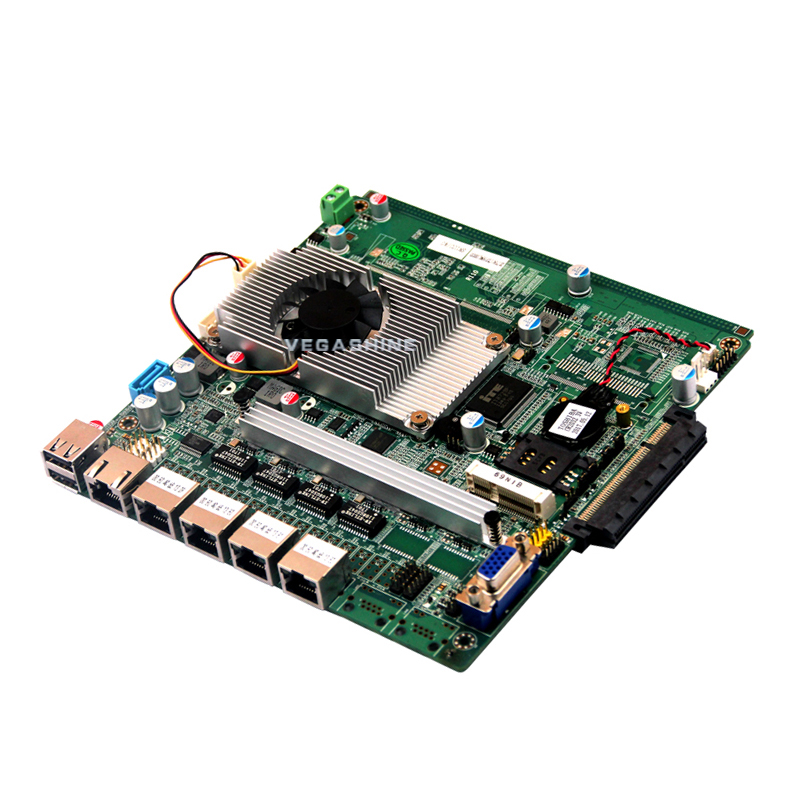

Mini Itx 4 Lan Firewall Pfsense Mainboard Bay Trail J1800 J1900 E3845 CPU

Name: Mini Itx 4 Lan Firewall Pfsense Mainboard Bay Trail J1800 J1900 E3845 CPU
Brand: VEGASHINE / OEM
Price: 1 USD

China Mini Itx 4 Lan Firewall Pfsense Mainboard Bay Trail J1800 J1900 E3845 CPU wholesale

Brand Name : VEGASHINE / OEM

Model Number : FW-PB24-BT

Place of Origin : Shenzhen China

MOQ : 1 unit

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 units per Month

Delivery Time : 3 to 10 work days

Packaging Details : Carton

CPU : Celeron® Bay Trail J1900 Quad core 4 threads 2.00~2.42Ghz

RAM : Onboard 2GB/4GB DDR3 RAM

Display : VGA

Ethernet : 4*Intel I211-AT Gigabit Ethernet LAN

COM : 1*RJ45 interface RS-232

USB : 4*USB 2.0

Size : 170*170 mm

Contact Now

Bay Trail J1800 J1900 E3845 Mini itx 4 lan firewall computer Motherboard pfsense mainboard

Notice :

When you inquiry , you can choose the following Model :

FW-PB24-BT-J1800 Integrated Celeron® Bay Trail J1800 dual core 2 threads 2.41~2.58Ghz processor

FW-PB24-BT-J1900 Integrated Celeron® Bay Trail J1900 quad core 4 threads 2.0~2.42 Ghz processor

FW-PB24-BT-E3845 Integrated Atom® Bay Trail E3845 quad core 4 threads 1.91Ghz processor

Quad cores J1900 Mini itx 4 lan firewall computer Motherboard pfsense mainboard

Key features

Integrated Celeron® Bay Trail J1900 Quad core 4 threads 2.00~2.42Ghz processor

Onboard 2GB/4GB DDR3

4*Intel I211AT

1*RJ45 interface RS-232

1*VGA

1*SATAII connector

1*Mini-PCIe M-SATA Scoket

Aluminum alloy heat sink with fan

Single input DC power supply, DC12V

Size: 170*170mm

Specifications

Processor	CPU	Integrated Celeron® Bay Trail J1900 Quad core 4 threads 2.00~2.42Ghz processor
	CPU Package	BGA
	Chipset	Support Intel Baytrail Single chip
	BIOS	EFI BIOS
Memory	Technology framework	Signal Channel DDR3 1066/1333/1600MHz
	Capacity	Onboard 2GB4GB DDR3
	RAM socket	Can add 1*RAM socket,Max support 8GB Ram
Video	Graphic controller	Intel Graphics
	Graphic controller	Intel Graphics
	VGA	VGA Resolution maximum 2048x1536
Rear Panel I/O	Ports	4LAN 1RJ45 COM 2*USB2.0
Network	Controller	4*Intel I211-AT Gigabit Ethernet LAN(LAN1 and LAN2,LAN3 and LAN4 support 2 Group Bypass Function)
Super I/O	Controller	IT8728F
Hardware Monitor	Watchdog-Timer	0~255 timer
Hardware Monitor	Cooler	Aluminum heat sink with fan(or fanless)
Input/Output interfaces	USB	4*USB2.0 pin header, Max. Current supported 5V/1A
	USB	4*USB2.0 pin header, Max. Current supported 5V/1A
	Serial ports	2RS232,2pin header,1RJ45 ports(When RJ45 interface’s serial port can use,only have 1serial port pin header )
	GPIO	8bit,sample code, Free defination input or output ,3.3V@24mA
Storage	SATA/M-SATA	1*SATAII connector, Maximum transmission rate 3Gb/s
	SATA/M-SATA	1*M-SATA Scoket,support SANDISK Protocol,Maximum transmission rate 3Gb/s.(Optional)
	CF/Cfast	1*CF or Cfast storage interface(Optional)
Power Supply	Power Type	Single-input DC power supply,DC12V,+/-5%
Power Supply	Power consumption	15w
Work environment	Working temperature	-20°C~60°C (-32°F~140°F)
	Storage temperature	-40°C~85°C (-104°F~185°F )
	Working humidity	10%~90% (non-condensing)
	Storage humidity	10%~90% (non-condensing)
Measure	Size	170mm x 170 mm
Measure	Weight	0.5KG
Support system		Support Win 7/8/10, Linux, Pfsense, Mikrotik, iKuai, WayOS, LEDE, Openwrt, Panabit, Smart6 , Ubuntu , Centos etc.

Mini Itx 4 Lan Firewall Pfsense Mainboard Bay Trail J1800 J1900 E3845 CPU
